Usage:
WOOD CUTTINGVoltage:
220V-380V 24VDimension(L*W*H):
375x252x680mmWarranty:
1 YearApplication:
Woodworking, Home use, Construction works, Building Material ShopsWeight (KG):
20 KGPower (kW):
0.5Key Selling Points:
Easy to OperateMax.Working Width(mm):
230mmBand Saw Type:
Log Band Saw
Usage:
multi blade saw cutting machineVoltage:
380vDimension(L*W*H):
1460*900*1500Warranty:
1 YearApplication:
Wood factory, Furniture factory, Rip saw for woodWeight (KG):
800 KGPower (kW):
12kwKey Selling Points:
Automatic
Dimension:2200*1000*1400MM
Roller quantity: 4
Roller length:1400MM
Robber thickness:13MM
Glue roller diameter: 246MM
Squeezing roller diameter:217MM
Gluing speed: 24-90m/min
Motor power:3kw
Reducer:2 cycloid pin
Max. Venee widthr:1400MM
Max. Veneer thickness:20MM
Total weight of this machine:1000kgs
Dimension:2200*1000*1400MM
Roller quantity: 4
Roller length:1400MM
Robber thickness:13MM
Glue roller diameter: 246MM
Squeezing roller diameter:217MM
Gluing speed: 24-90m/min
Motor power:3kw
Reducer:2 cycloid pin
Max. Venee widthr:1400MM
Max. Veneer thickness:20MM
Total weight of this machine:1000kgs
STRONG DANAE WOOD WORKING MACHINES TAIWAN GERMANT KEYS AND MOTORS
Final board dimensions
(8~40)×1220×2440mm
Pressing Cycle is exclusive to press machine loading and unloading.
based on product process
Total operational pressure
16000KN(1600Tons)
Unit specific pressure
43.9kg/cm2 Dimensions of the plate 1400 2600mm (hot platen thickness is 140+120mm) (up and bottom) Press muscle
With 10 plates installed, the thickness of each plate is 50mm.
Daylight opening
220mm Main cylinder(Diameter×stroke
F320×220mm 8 units CYLINDERS
Pressure of hydraulic system's oil
≤25MPa Plate heating temperature
≤210℃ Temperature regulation of plate heating
Digital temperature control metre (with secondary cycling mechanism).
Temperature regulation accuracy of heating plate
(Upward and downward heating plates are independently regulated) Functionality of loading device Belt type+ inverter
Rapidity of loading system
around 60-90 metres per minute
Mode of operation of loading device Inverter + motor servo
Control mode of complete wire
PLC BRAND: DELTA TAIWAN-MANUFACTURED
Arrangement of energy
0.48MW(20×104 kcal/h)
Heating elements of the heating plate
Mineral oil (Boiler prepared by user self)
Total force: ~22kW
Gross Weight ~42000kgs
Dimensions of the line (LengthWidthHeight).
3200×1400×3600mm
Capacity 1200sheets in twenty hours

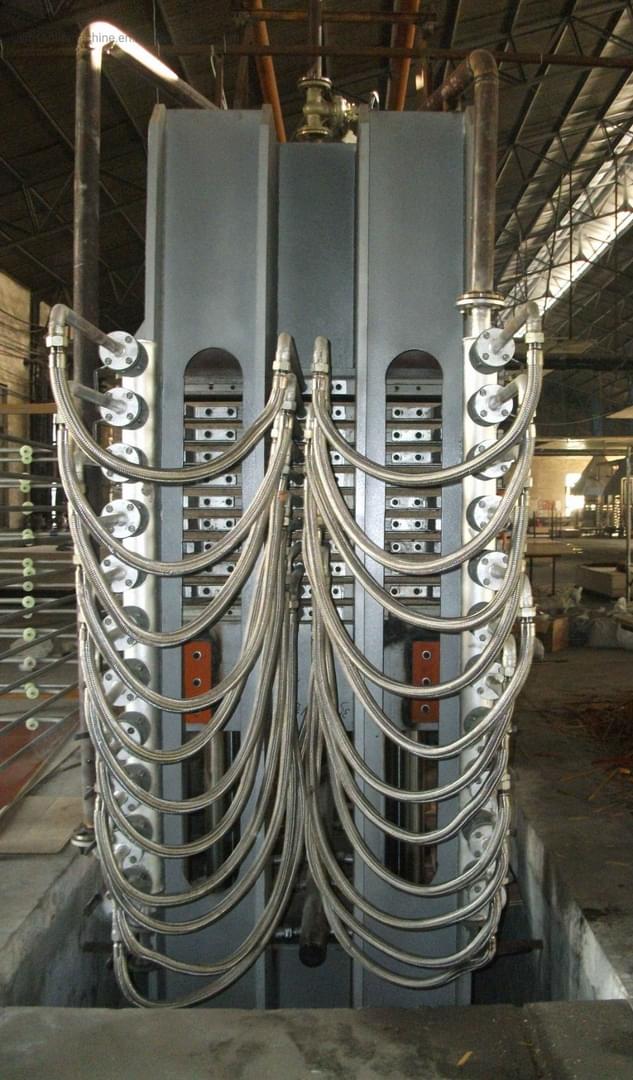

this is 800T 20 layers plywood hot press machine. it is the basic plywood making machine.Our plywood hot press machine steel thickness is 35mm,the plywood hot press machine hot platen thickness is 42mm.this plywood hot press machine uses WUXI brand hydraulic station.
the plywood hot press machine pressure and layer quantity can be customized according to client's requirement.Specifciation:normal pressure: 500T
Direction of boards inlet: transverse
Layers:20
Openning distance:70mm
Quantity of hot platens: 16
Size of hot platen: 1370x2700x42mm
Hot platen inside pipeline: two inlet and two outlet
Quantity of cylinders: 2-3-4pcs
Diameter of main cylinders:360mm
Working stroke of cylinders: 1050mm
Allowed pressure: <=25Mpa
Closing time of no-loading:11seconds
Flow of low pressure pump:280x1pcs
Allowed pressure: 3Mpa
Power motor: 15kwx1sets
Flow of high pressure pump: 25x1pcs
Allowed pressure: 25Mpa
Power of motor: 5.5kwx1set
Dimension: 3700x1370x4960mm
Controlling methods: automatic hydraulic stations
Thickness of up and down colume: 900mm
Main steel plate thickness: 35mm
Total weight of this machine: 33T
Heating medium: thermal oil
Wooden hot platen features:
1,thickenss is customised 42mm,52mm,60mm,70mm,120mm &\s2,material is Q235B or Q345 steel
3,surface polishing ,sanding or electroplate treatment
4,oil pipeline double input and double outlet
5,hot platen size is customised, 5*5ft,3*6ft,4*8ft &
plywood hot platen Specifciasstion:
hot platen thickness
42mm,52mm customized\shot platen size 3*6ft,5*5ft,4*8ft customized\shot palten material Q235 or Q345B\shot platen surface treatment polishing ,sanding or electroplate treatment\sapplication
plywood machine,particle board machine,OSB machine,MDF machine\sinside oil pipeline double inlet and double outlet
Paving Technical Parameter...
power:13.5kw
Dimension:2700*1150*1580mm
Weight:5.6T
The cutting way:saw or blade
The loading:automatic
Warranty:one year
lentght:18m,24m,30m,36m
Plywood poplar veneer paving line in china from STRONG DANAE
Plywood paving equipment is essential. The plywood STRONG DANAE Chinese woodworking machine manufacturer is an expert core plywood paver provider. This machine is used to create plywood from veneer. It is the base platform for veneer paving. Utilizing the plywood paver machine, reduce lumber usage and increase manufacturing capacity.
IN STRONG DANAE WOOD WORKING MACHINES YOU CAN CUSTOMIZE YOUR STRONG HEAVY MACHINE >> Desgin strong thick Steel Sturcture With your Best Taiwan Motors & German or japaness electricty Keys and Chinese Brand PLC ... in Strong Danae wood working you are in Safe place
- Blockboard Core production line - Plywood Production line
- Furniture making production line - Melamine paper impgration line
- HPL Formica Production line
Specification
Sliding Table Size3200x430mm(375mm optional)
Max.Cutting Length3100mm
Cutting Width Between Saw 1200mm
Max.Cutting Thickness80mm(100mm optional)
Main Saw Blade Diameter305mm(200mm-400mm optional)
Scoring Blade Diameter120mmMain
Saw Blade Speed 3000/4000/5000rpmScoring
Saw Blade Speed 8800rpmMain
Saw Spindle Diameter30mm
Scoring Saw Spindle
Diameter20mm
Main Motor5.5kw
Scoring Motor1.1kw
Saw Blade Titling Angle 90°-45°
N.W/G.W850/900kgPacking
Size 2050*1200*1130mm3250*450*300mm

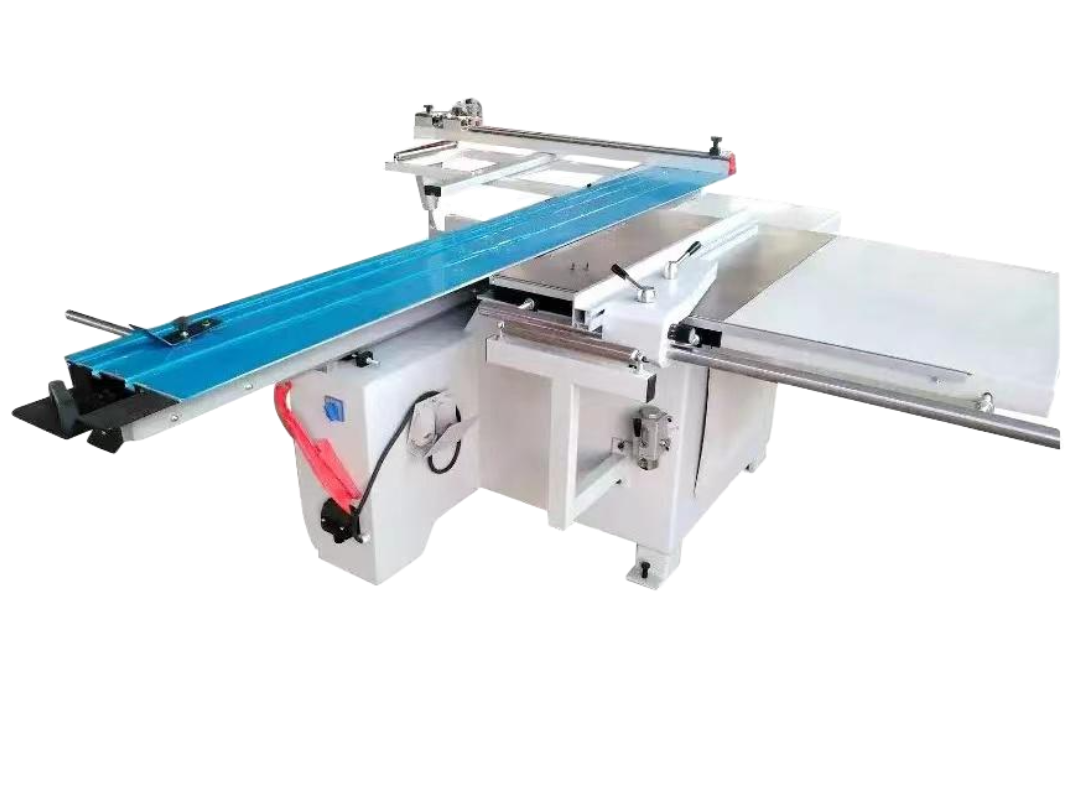

STRONG DANAE
SLIDING TABLE SAW MACHINE
Feature\sAdvantages:
1.High grade cast iron machine table and aggregates
2.The ideal machine for any budget
3.Complete dependability in professional use
4.Tailor made machine solutions
5.High grade cast iron machine table and aggregates
6.First class manufacturing and finishing standards
Brief Introduce
Motorised rise/fall and tilt adjustment (0 – 45°)
1.The sliding table is built of aluminium alloy.
The design is widely considered as the preferred choice for high-end sliders today.
Ultra-smooth mobility allows you to shift the table effortlessly.
2.Rip fences with manual fine adjustment
The European design rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.
On the reverse of the casting is a little movable wheel to make sideways movement a breeze.
The rip fence is equipped with a micro adjustment for fine-tuning; simply lock it in place and make gradual adjustments to the fence.
3.Digital presentation of tilt angle
4.Double tilting within reach of everyone Saw unit.
New saw unit with a rigid cast-iron frame ensures the flawless and effortless cutting of veneer panels and very thick solid wood material.
